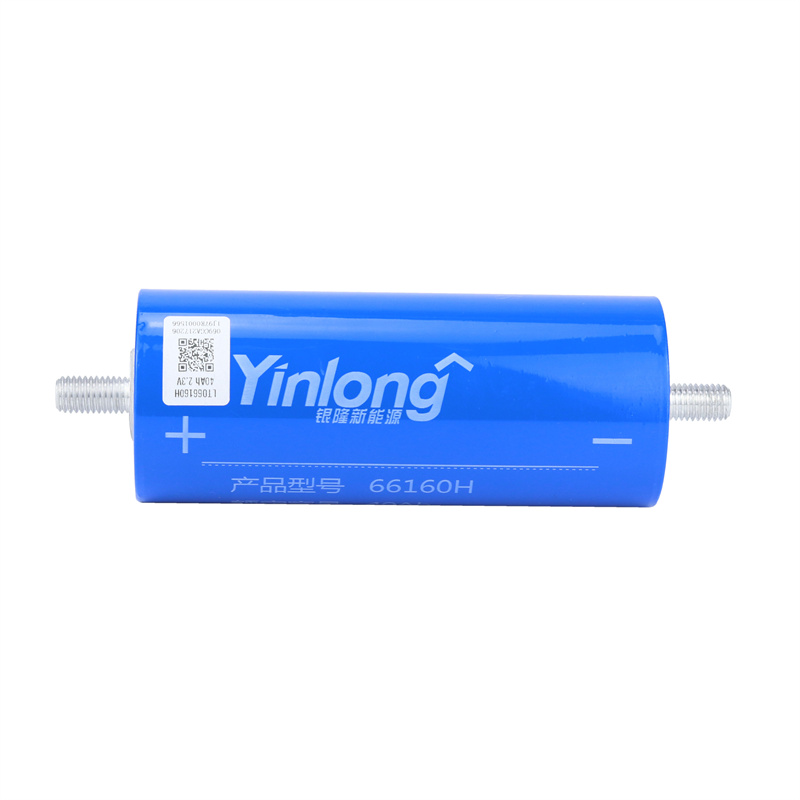

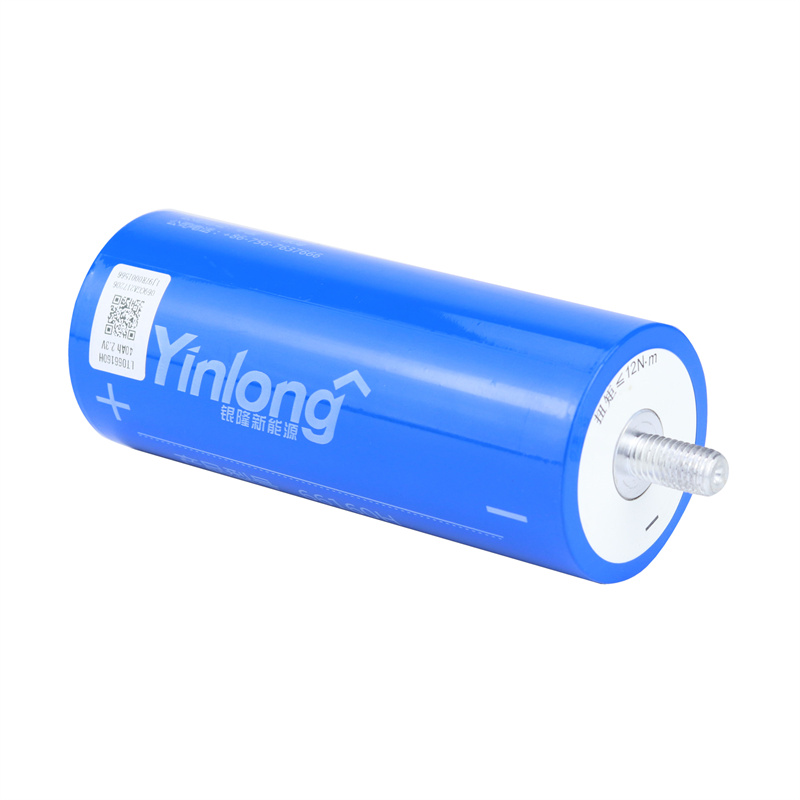

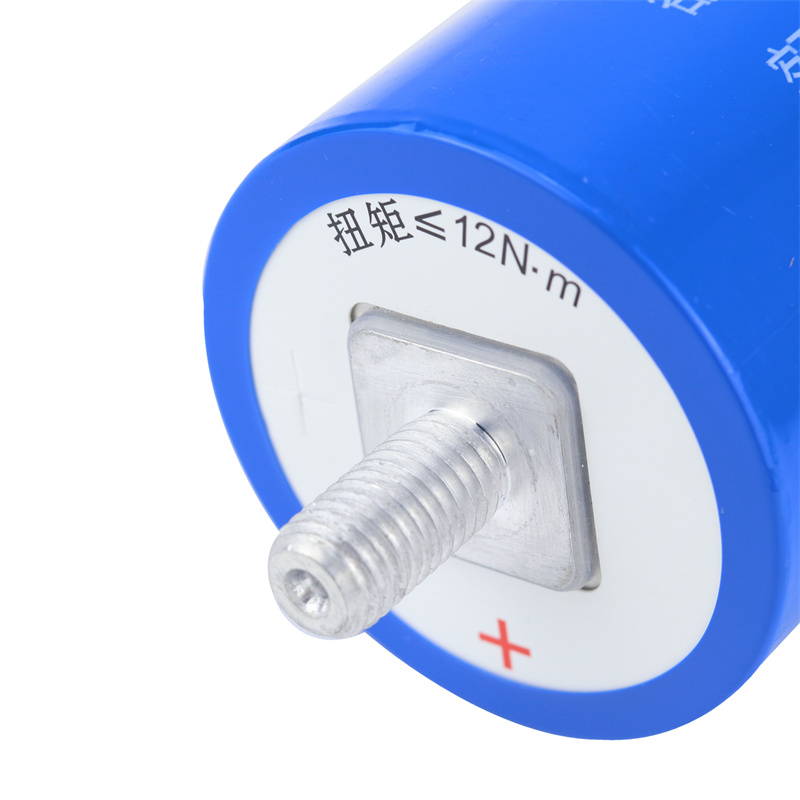

66160 40ah lto battery cell
40ah Battery cell Datesheet
|
Battery Cell Type |
LTO battery |
|
Model Number |
YINLONG LTO 66160H |
|
Nominal Voltage |
2.3V |
|
Nominal Capacity |
40Ah |
|
Cycle Life |
16000cycles with DOD 100% to 80% capacity under normal temperature. Up to 25000times cycle life |
|
Internal Resistance |
0.2~0.3mΩ |
|
Discharge cut-off voltage |
1.9V |
|
Maximum charge Voltage |
2.5V |
|
Standard charge current |
10C 400A |
|
Charging and charger |
CC/CV with professional charger |
|
Storage temperature |
-30°C-75°C |
|
Dimensions(mm) |
66mm X 66mm X 160mm |
|
Weight |
1.20±0.02KGS |
