EVE MB31 3.2V 314ah lifepo4 battery cell

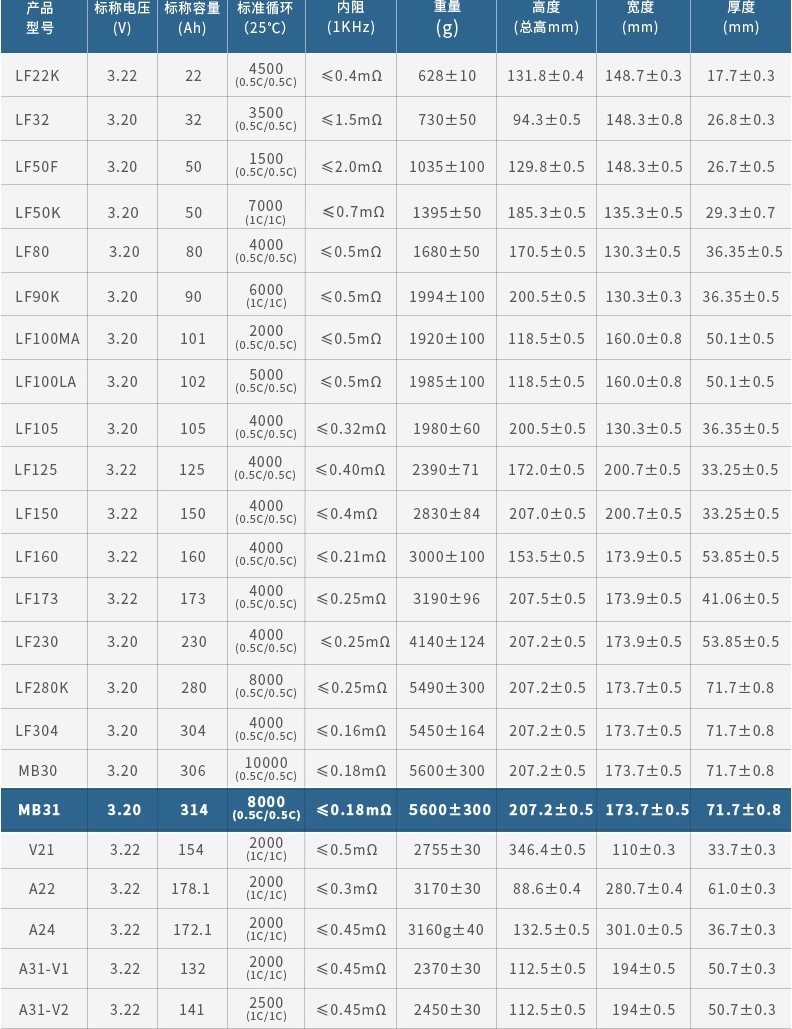

LF304 Battery cell Datesheet
|
Battery Cell Type |
Lithium Iron Phosphate (LiFePO4) battery |
|
Model Number |
MB31 |
|
Nominal Voltage |
3.2V |
|
Nominal Capacity |
314Ah |
|
Cycle Life(25°C) |
8000 cycles |
|
|
|
|
Working Voltage |
2.5-3.65V |
|
Internal Resistance |
0.18 mΩ |
|
End of discharge Voltage |
2.5V |
|
Charge Method |
CC/CV |
|
Standard charge and discharge Charge/Discharge Current |
0.5C/0.5C |
|
Continuous Charge/Discharge Current |
1C/1C |
|
Pulse Charge/Discharge Ccurrent（30s） |
2C/2C |
|
Recommended SOC window |
10%-90% |
|
Charging Working Temperature |
0℃-60℃ |
|
Discharging Working Temperature |
-30℃-60℃ |
|

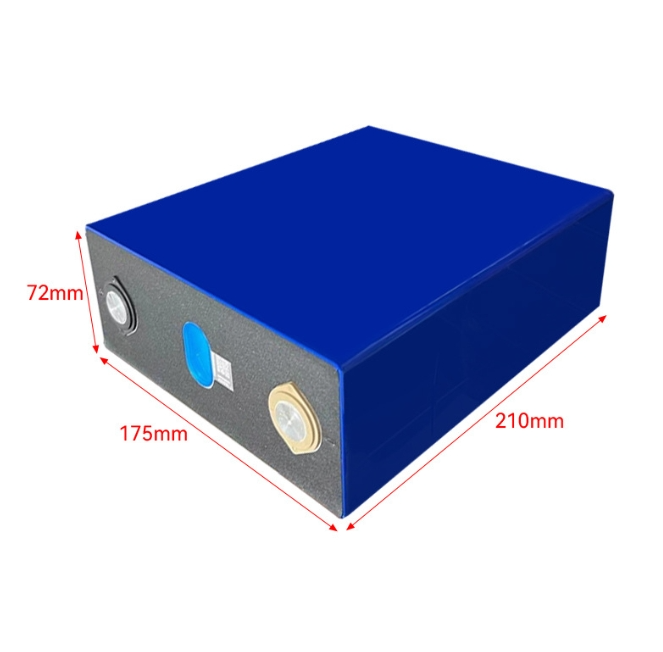

Dimensions(mm) |
L173.5mm X W72.0mm X H208.8mm |
|
Weight |
5.6KGS |
|
Shell Material |
Aluminum |
