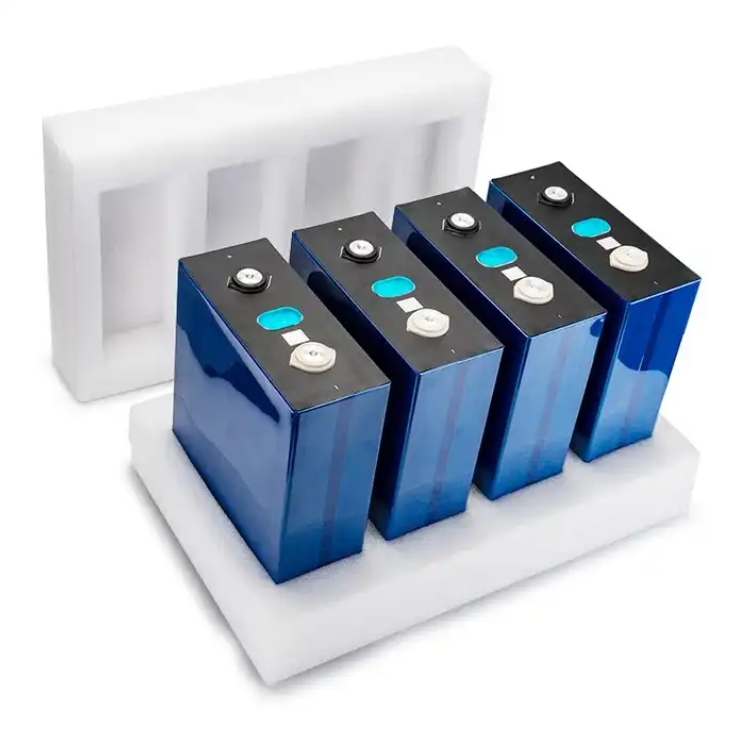

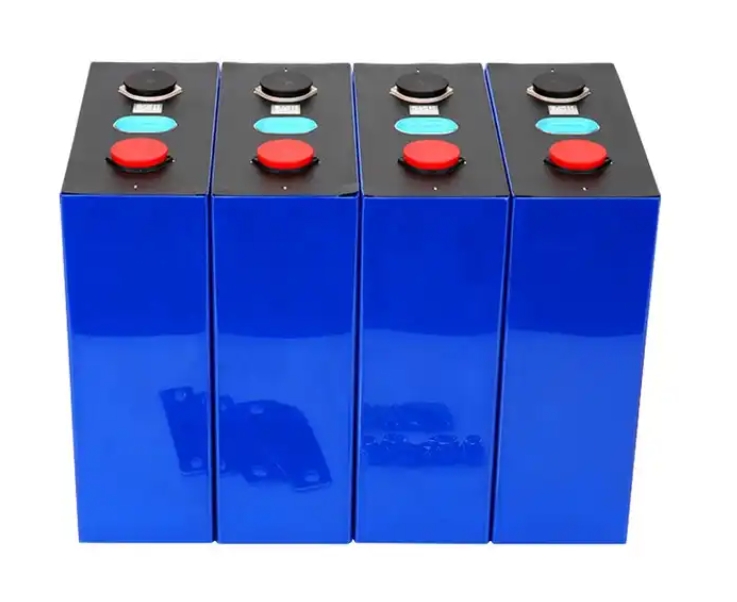

LF280 EVE 3.2V 280ah lifepo4 battery cell
LF280 Battery cell Datesheet
|
Typical Capacity |
280Ah |
|
Typical Voltage |
3.2v |
|
Weight |
5.3kg |
|
Dimension |
173.7*71.5*204.8mm |
|
AC Impedance Resistance |
≤0.25mΩ |
|
Standard charge and discharge/Discharge Current |
0.5C/0.5C |
|
Standard charge and discharge/Discharge Cut-off Voltage |
3.65V/2.5V |
|
Continuous Charge/Discharge Current |
1C/1C |
|
Pulse Charge/Discharge Current(30s) |
2C/2C |
|
Cycle life |
3500 times |
|
Recommended SOC window |
10%~90% |
|
Charging Working Temperature |
0℃~60℃ |
|
Discharging Working Temperature |
-30℃~60℃ |
